Explore ideas. No order or payment required. The designer is free. Enter and confirm your start height, then add pieces and explore your design.
Your available space
Enter and confirm your start height, then add pieces and explore your design.
First, enter your start height above the pool coping. We need this before we can calculate your slide profile and gradient.
Measure vertically from pool coping to the slide start, then confirm. Required before adding pieces, using 3D or requesting a quote.
Selected colour:
Our standard colours: Standard White, Seagull Grey, Almond Ivory and Arctic Blue. Other colours are Special Order and may take somewhat longer; no special-order surcharge has been confirmed.
Tap a piece to edit. Drag pieces to reorder.
Indicative delivered price
All prices include GST. We’ve included a conservative allowance for delivery. Your actual freight cost may be lower depending on your postcode and final freight arrangements, including where you are located in VIC or WA. Any freight saving will reduce your final delivered price.
Measurements and viewing orientation
Indicative gradient
The final entry/end profiles and pool-entry elevation still need confirmation.
Gentler gradient for a more relaxed ride.
Steeper gradient for a quicker, more lively ride.
Much steeper gradient with a faster, more dynamic ride.
For comparison only. Final height, gradient and suitability will be confirmed before manufacture.
What affects the ride?
Curves, water flow, the rider and final geometry also affect the ride; gradient alone does not guarantee speed.
Nominal component falls for comparison: A Entry 600 mm once; B 1 m straight 200 mm each; C/D curves 300 mm each; E 2 m straight 200 mm each; F End 0 mm assumed for indicative comparison only. This F assumption is not a certified manufacturing dimension. Final F profile and pool-entry geometry remain subject to confirmation before manufacture.
Compare designs and check you're ready
Keep up to two ideas here while you design. Only submit the one you intend to buy.
The blue dotted rectangle changes with your measurements. F stays at the pool edge. Your qualified installer must check the concept against your actual site.
View AquaSplash BrochurePlay on the sample or use your property
Everything works on the sample. Try ideas now, then add your own photo.
Your photo is kept on this device. It is included only in the brief you choose to send.View AquaSplash BrochureMark your available area
Drag corners 1–4 and enter the actual side measurements. Choose the pool edge below. F stays fixed to that edge and the slide connects back towards A.
Shape your design
Choose a suggestion or build your own.
A starts your slide and F finishes at the pool. They stay in every design. Move the other pieces with the arrows.View your design in 3D
Drag to rotateSide elevation / indicative fall
START is raised above F / pool level.Approximate shape and fall. The model shows supplied fibreglass sections only. Supports, site levels and installation require later review.Check the concept and price
2D customer design plan
The route, section order and dimensions below drive both 3D views. F is fixed to the selected pool edge.
Supply scope: Fibreglass slide sections in the selected colour. Supports, support structure, footings, access structures and installation are not included. Freight is shown separately where applicable. Final site suitability and installation must be confirmed by the appropriate installer/contractor.
Your saved ideas
Saved on this device. Share a working concept with a link; a photo uploaded from your device cannot travel in that link. Keep your downloaded brief as a backup.
My AquaSplash Design
Review your selected design and its reference before requesting a component supply quote.
No payment. We’ll call you to check the design and price.
Every design is personally checked by Fred and Jeanette before we quote it.
Review your selected design
Drag to rotate the preferred design.Measured-height concept preview
3D on your property
2D dimensioned plan
Supply Scope — What is Aqua Action supplying?
Screen colour can vary; final colour is checked against the physical manufacturer sample.
Budget (optional)
You can leave both questions unanswered. Your answers help us review your design.
Ready to Send
Send us the one design you're genuinely considering. We'll confirm the AquaSplash components required, price, estimated freight, availability and expected supply timing. Submitting your design doesn't place an order and no payment is taken.
Important information for your installer
The proposed pool entry, dimensions and layout are indicative. Your appropriately qualified installer/contractor must determine site suitability and check engineering, supporting structures, footings, access, pool entry, water depth, clearances, site works, compliance and all installation and safety requirements against manufacturer requirements and applicable standards and regulations.
Planning guidance: at least 1.2 metres of water depth at the entry, clear of steps, benches, ledges and other obstructions. 4 metres of clear water ahead in the rider's direction of travel is recommended. Your installer must check the requirements for your site; this guidance does not certify the installation. Planning a future pool? Discuss this with your pool builder.
Want to change your design? No problem. Simply submit your revised design and we'll treat it as a new quote request with its own indicative delivered price.
No payment is taken. Aqua Action will contact you personally to confirm components, price, freight and expected supply timing.
We use your contact details and chosen design to review your request and follow up personally.
See what others have built

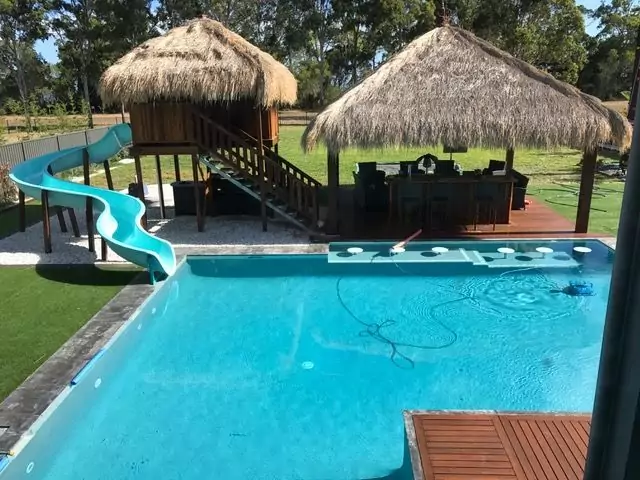

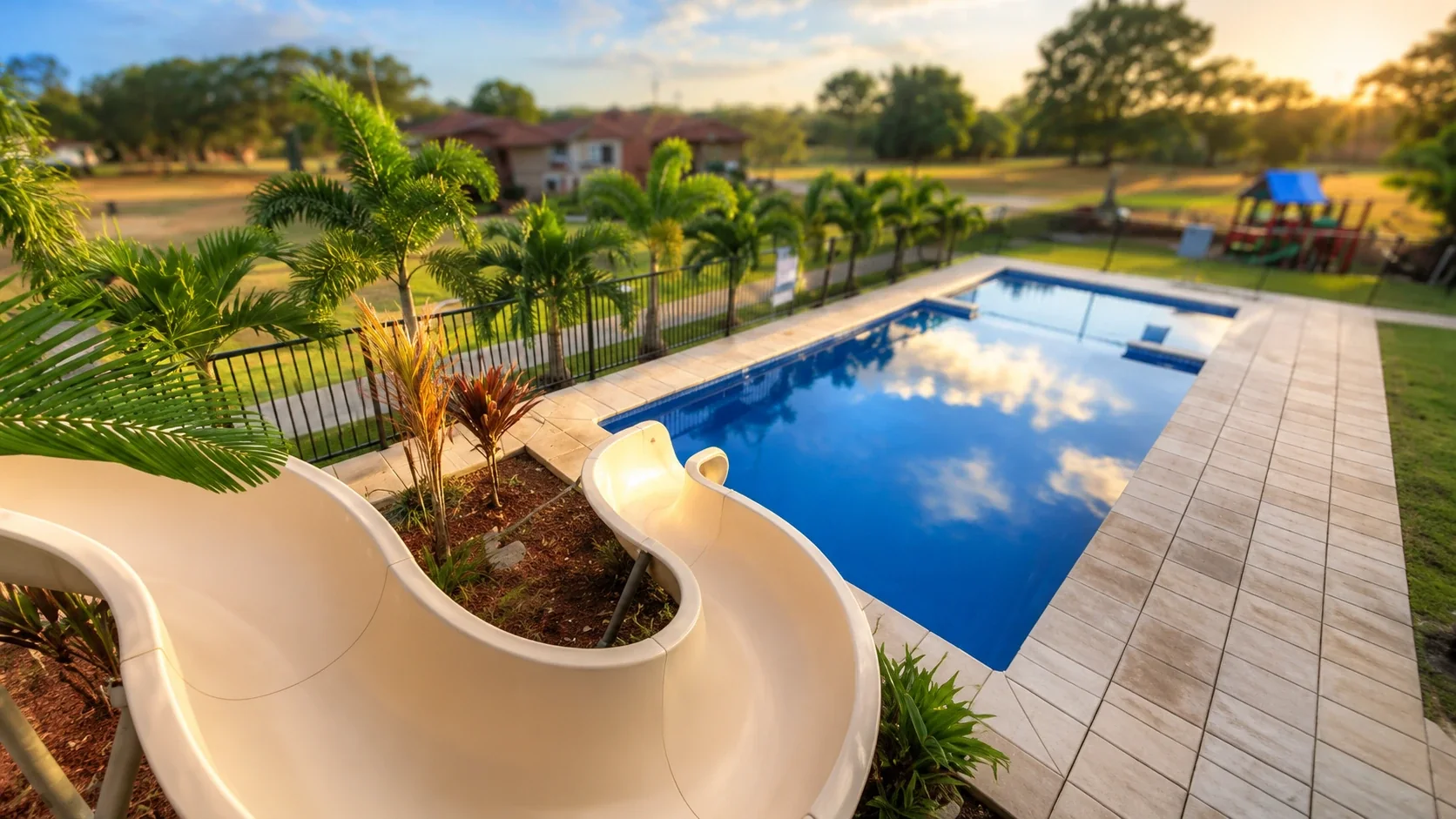

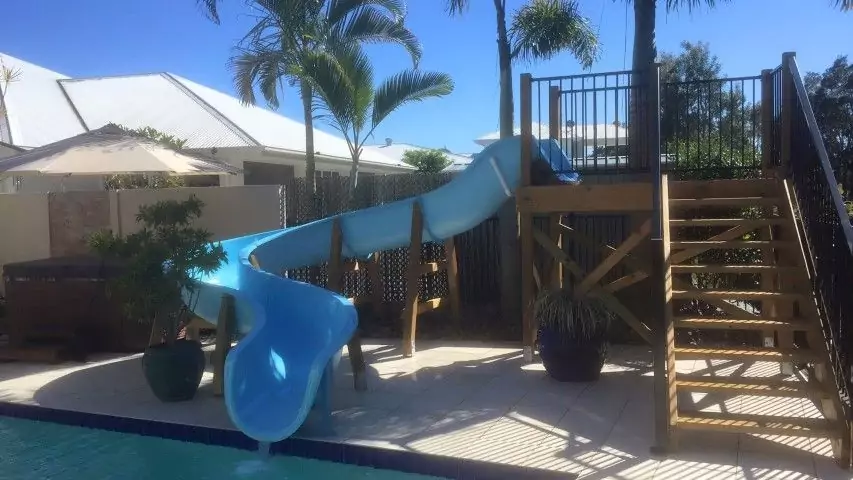

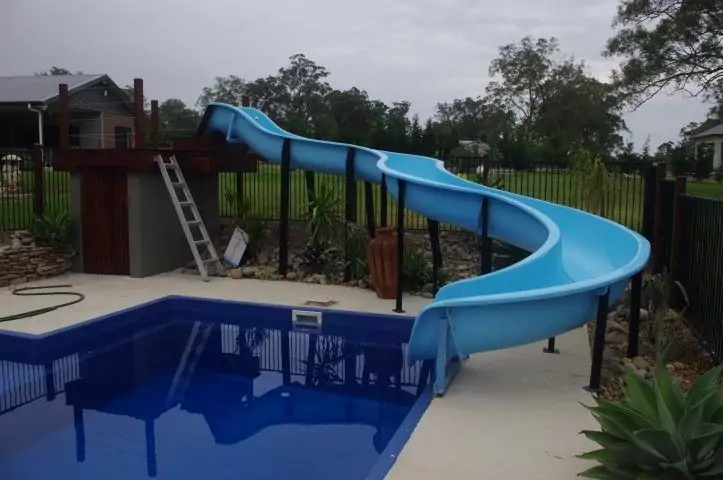

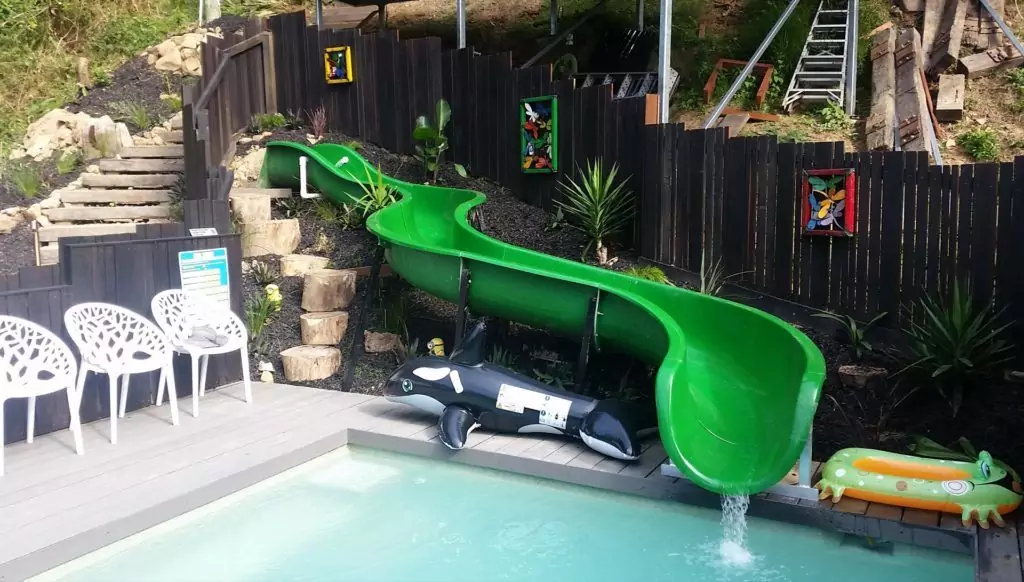

Actual AquaSplash installations
